[MO-180] Professional DVB-T/DVB-H modulator for SFN/MFN
DVB-T or DVB-H modulator with triple MPEG-2 Transport Stream input (2xASI, 1xSPI) and double output (IF and RF). In includes test modes and PID filtering.

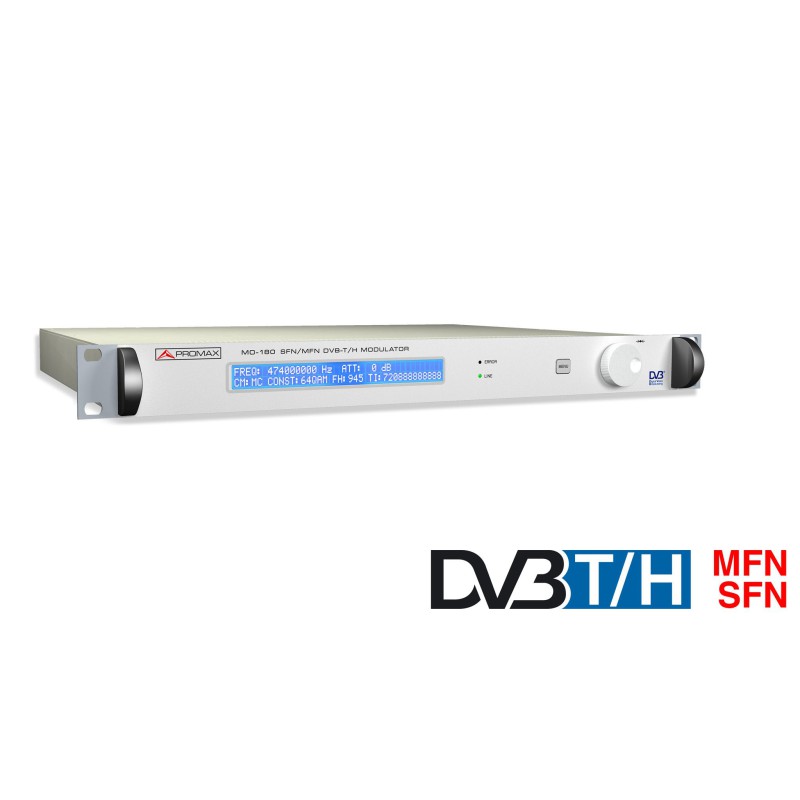

The MO-180 is a DVB-T and DVB-H modulator for implemented in a standard 1U 19” rack. If features three MPEG-2 TS inputs (2xASI, 1xSPI) as well as a 1 pps 10 MHz input (for MFN synchronization) and a 10 MHz output.
In can operate in slave mode (locked to the input TS) or in master mode (locked to an internal/external TCXO reference). It includes PCR re-stamping with NULL TS packets insertion to adapt the bitrate to the required bitrate.
The MO-180 supports the 2k and 8k modes, as well as the hierarchical transmission, and can be used in SFN and MFN networks. The modulator output frequency is selectable between 45 and 875 MHz and it is designed to operate in MFN or SFN networks, being configured from the front pannel keys with the aid of the LCD screen.
SPECIFICATIONS
- MPEG-2 TS inputs: 2xDVB-ASI, 1xDVB-SPI
- Master mode operation (MFN): Internal TCXO or 10 MHz external GPS references
- Slave mode operation (MFN): Ts bitrate below the defined in the DVB-T/H specification.
- SFN: 10 MHz external reference or input TS bitrate
- Additional features: Automatic switching between ASI inputs when a sync loss occurs.
- GPS input: 10 MHz or 1 pps input.
- IF output: Normal or inverted polarity.
- RF output: From 45 to 875 MHz
- DVB-T/H parameters: Carriers (2, 4, 8k), Guard intervals (1/4, 1/8, 1/16, 1/32), HP/LP code rates (1/2, 2/3, 3/4, 5/6, 7/8), Constellations (QPSK, 16QAM, 64QAM), Channel bandwidth (5, 6, 7, 8 MHz).
- Test modes: Carrier blanking, Pilot carriers, Single carrier, TS packet generation, PRBS generation, Bit error injection
- Control interface: RS-232C (optional SNMP)
- Power supply: From 90 to 250 V AC 50/60 Hz
- Consumption: 20 W
- Weight: 6.3 Kg.
- Dimensions: Rack 1U: 482.6 (Width) × 44,4 (Height) × 381 (Depth) mm
