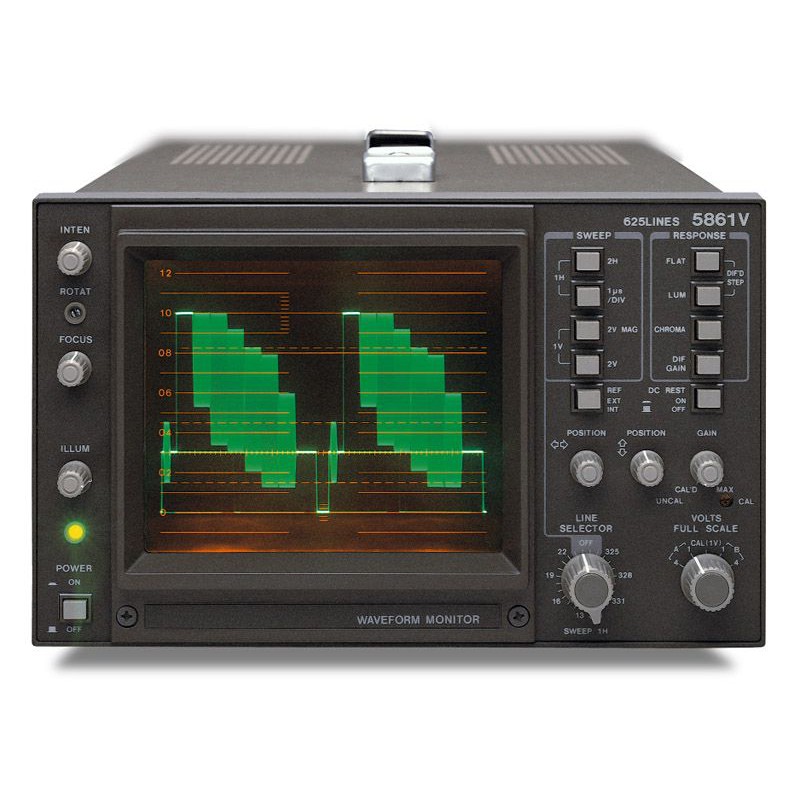

[IC-031] PAL waveform monitor
Waveform monitor for television signal with measurement of those composite video, timings and frequency responses that are too complex to measure with the usual oscilloscopes.
€1,000.00
Dependiendo del sistema de sincronización y de la frecuencia de subportadora, el 5861V es compatible con los sistemas PAL B, C, D, G, H, I y K.
Los métodos de diferenciación por pasos se utilizan para representar diferenciales sobre señales en escalera, facilitando de este modo las medidas de la linealidad de las componentes de la luminancia del sistema de transmisión.
Incorpora una función de selección de línea para la monitorización de señales VITS (Vertical Internal Test Signals) y VIR (Vertical Internal Reference), así como una salida de señal de borrado y otra de vídeo.
Selección del modo de barrido horizontal desde 2H, 1H, 1ms/div 2V, 1V, y 2 V MAG. La respuesta en frecuencia del eje vertical es seleccionable entre FLAT, LUM CHROMA, DIF GAIN, y DIF'D STEP.
Posibilidad de establecer el factor de escala en K para el análisis de la respuesta en frecuencia.
IC-031
