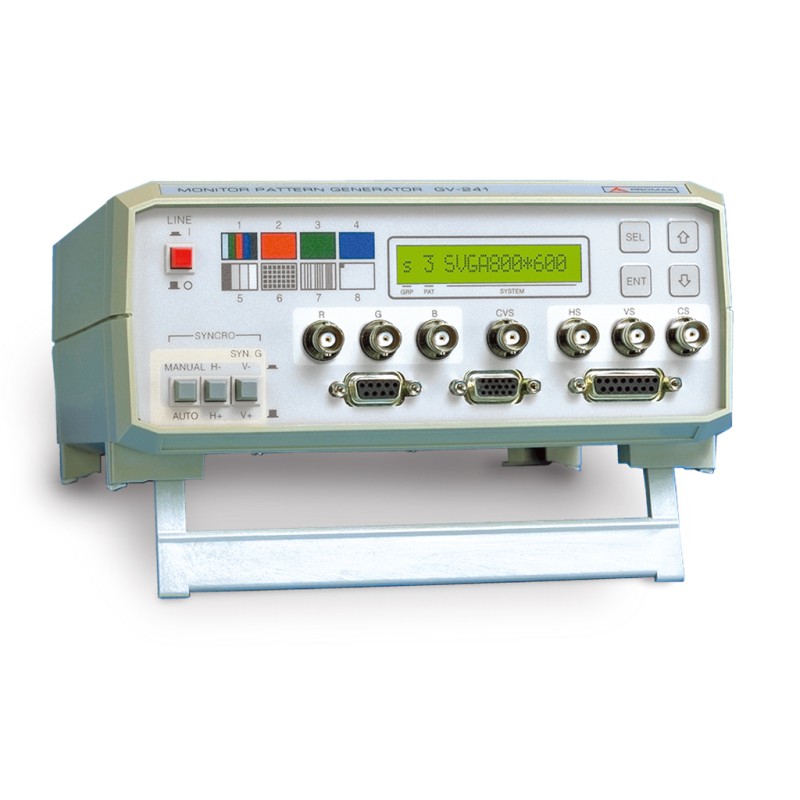

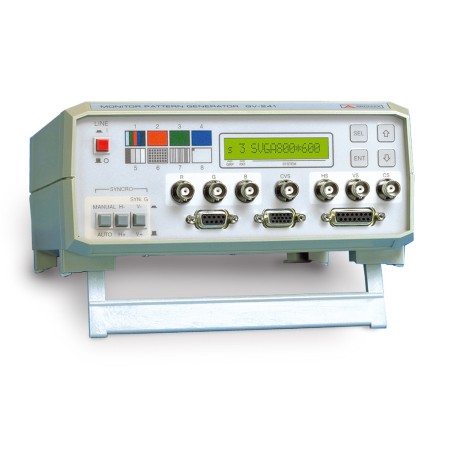

[GV-241] Universal test generator for monitors

The GV-241 is a universal generators to check computer monitors that greatly simplifies their adjustment, verification and repair.

€247.93
Quantity
Out-of-Stock

The wide range of different models in the computer monitor field drives demand for versatile instruments like the GV-241, a universal generator for checking monitors that greatly simplifies their adjustment, verification and repair.

The GV-241 provides up to 29 possible graphic systems; signals are highly reliable in regard to sync, line and field timing. It supports three monitor connector types, as well as RGB, CVS outputs; horizontal, vertical and composite sync are through BNC connectors.

SPECIFICATIONS

  • R-G-B OUTPUTS: Red, Green (with or without sync) and Blue signals. BNC connector.
  • CVS OUTPUT: BNC connector.
  • SYNC OUTPUTS: Horizontal, Vertical and Composite.
  • MONITOR OUTPUTS: D9, D15, D15 mini.
  • PATTERN CHARTS: Color bars, Red purity, Green purity, Blue purity, Gray.scale bars, Crosshatch, Multiburst, White 100%

GV-241
