[FA-210] Variable DC power supply 20V,10A (triple protection)
Variable, cost-effective DC power supply with fine/coarse adjustment, as well as output current limiter.
0
reviews
Leave review

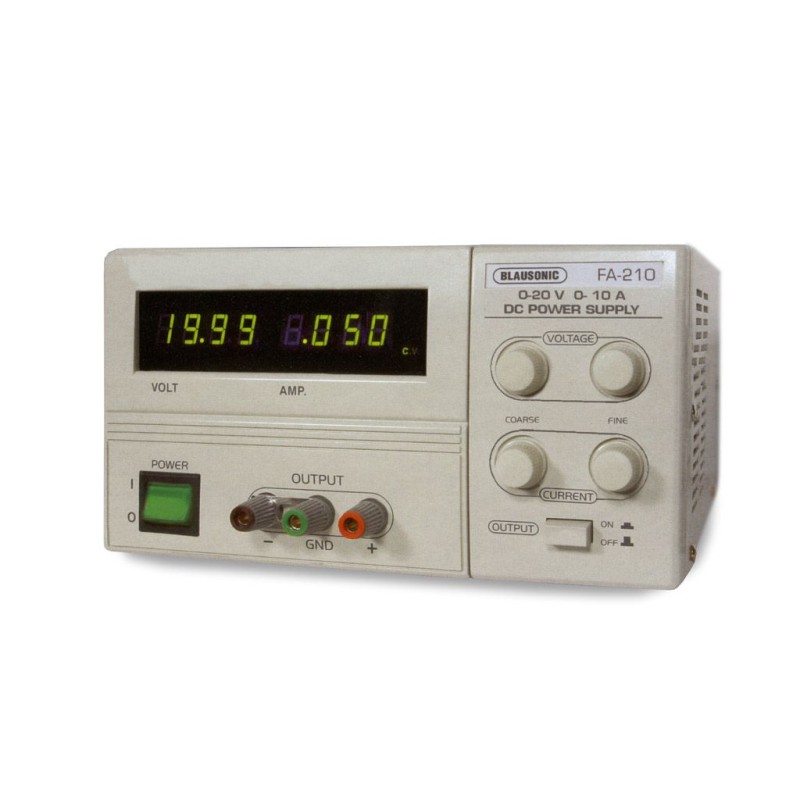

The regulable DC power supply FA-210 provides a variable maximum output voltage between 1 and 20 V with a current of up to 10 A. It includes maximum output current control to protect both the power supply itself and the circuits under test.
It has two digital displays that allow for simultaneous output voltage and current readings.
The regulable DC power supply FA-210 is fitted with fine and coarse controls for a better adjustment of the voltage and the current, as well as to predeterminate the maximum output current. Thanks to its rugged design, built-in protections and multifunctional applications, the FA-210 powe supply is specially indicated for laboratories, maintenance workshops, schools and generally in any electronic application.
- Variable output: From 1 to 20 V (0 to 10 A)
- Voltage and current control: Fine and coarse
- Measurement instruments: Digital
- Protections: Overvoltage, shortcircuit and thermal
- Supply: 100 to 240 V 50/60 Hz
- Dimensions: 205 (Width) x 115 (Height) x 275 (Depth) mm
- Weight: 3 kg approx.
FA-210
