OL-612: Digital oscilloscope + 16 channel logic analyser (professional range)

OL-612: Digital oscilloscope + 16 channel logic analyser (professional range)

Digital storage oscilloscope (100 MHz, 2 GS/s) with bundled 16-channel logic analyser. Real time sample rate of logic analyser: 1 GS/s. 8” display and connectivity: USB, USB for file storage and RS-232 (optional).

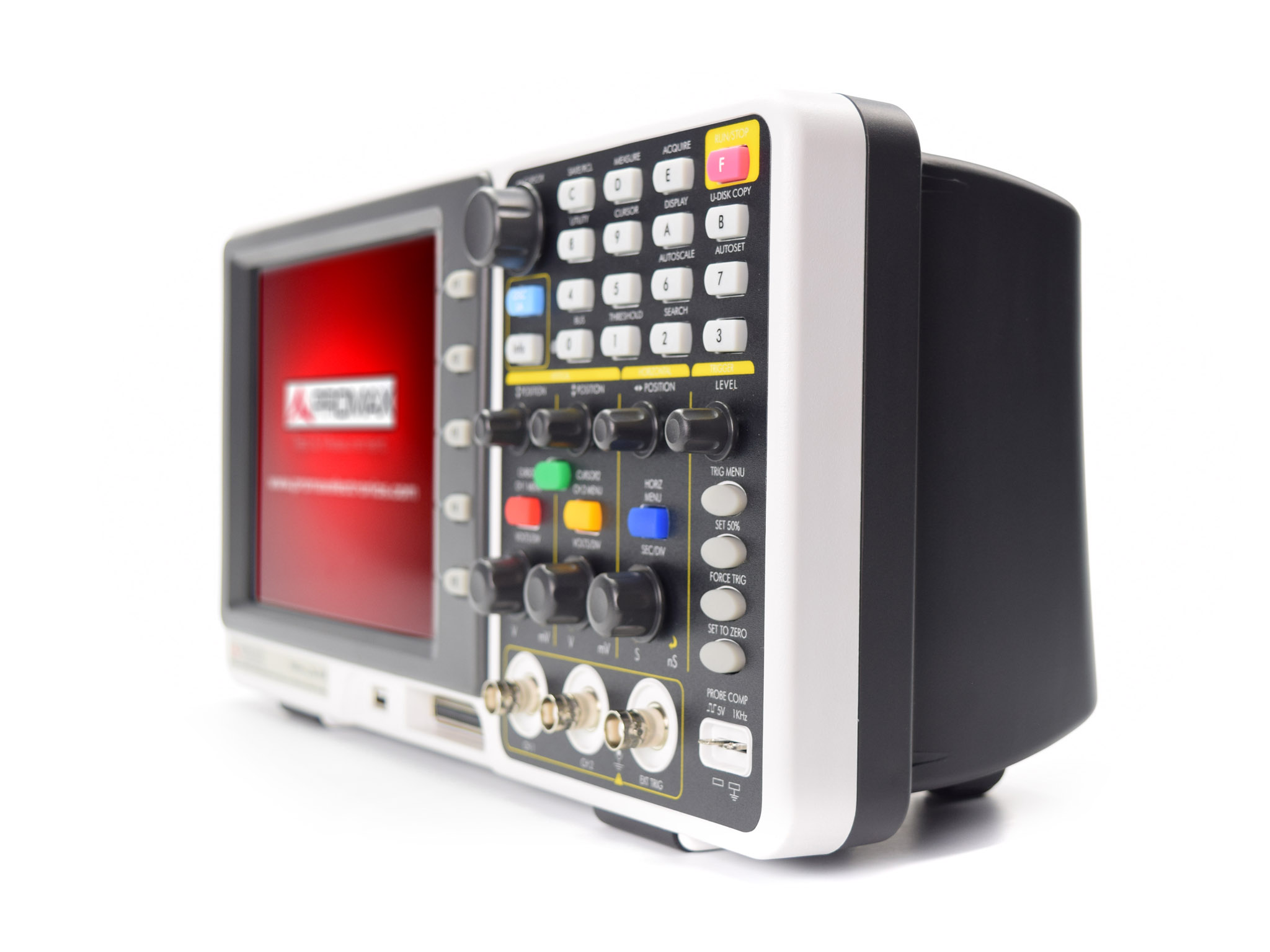

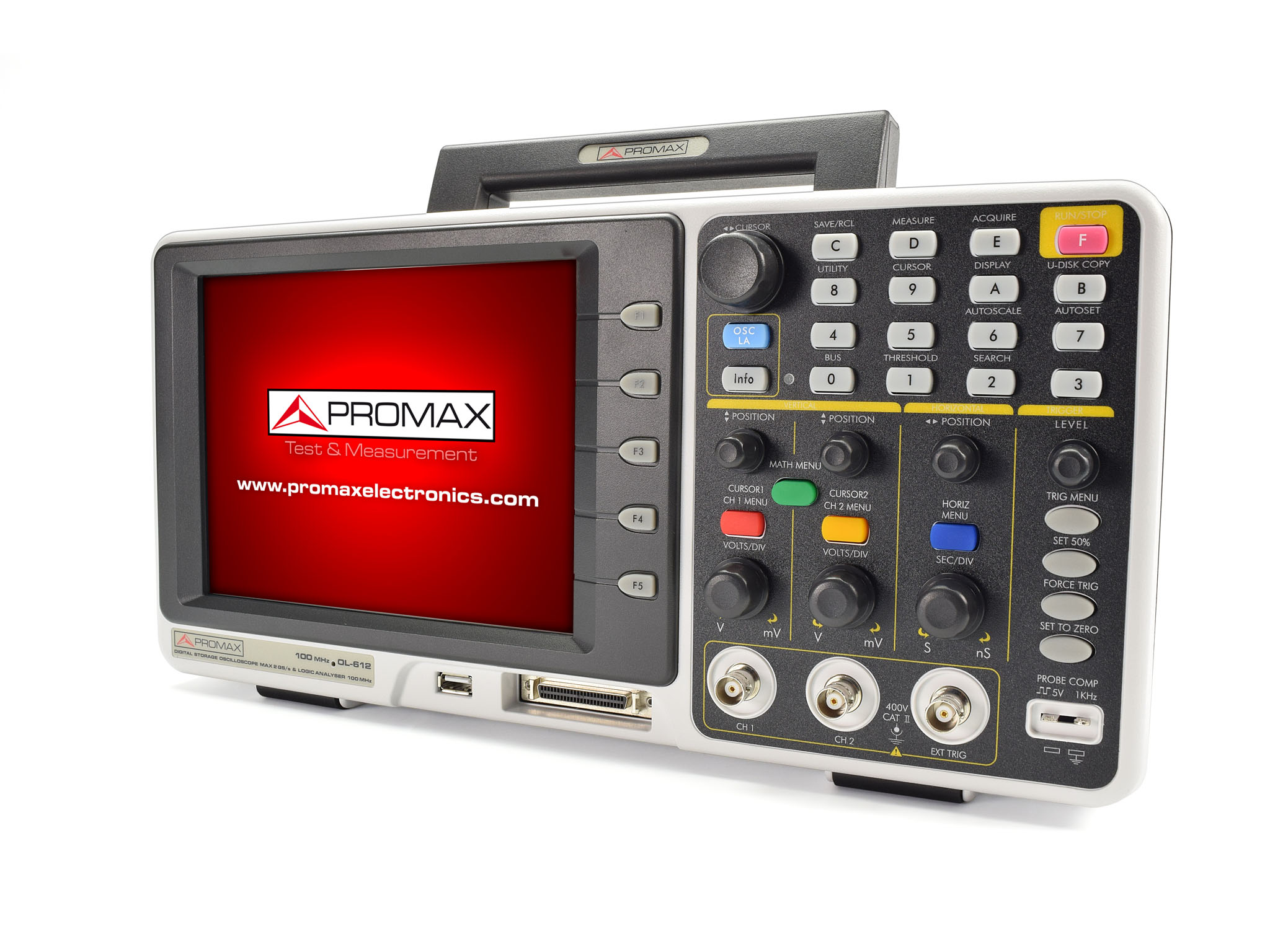

PROMAX OL-612 is an advanced multi functional oscilloscope plus a 16 channel logic analyser.

The digital storage oscilloscope features up to 200 MHz of bandwidth and up to 2 GS/s real time sample rate. The large 8” TFT display ensures quick, comfortable reading and operation.

It includes advanced functions such as several trigger modes, 20 automatic measurements, waveform storage and USB connectivity.

The bundled 16 channel logic analyser offers up to 200 MHz bandwidth and a sampling rate up to 1 GS/s. When connected to a PC, the free software application works with the equipment and allows to download, save, recall and analyse the data.

OSCILLOSCOPE
Bandwidth 100 MHz
Sample rate 2 GS/s
Channels 2 + 1 (external)
Trigger Edge, Pulse, Video, Slope, Alternate
Record length 2 M max
LOGIC ANALYSER
Bandwidth 200 MHz
Sample rate From 20 S/s to 1 GS/s
Channels 16
Record length 4 M per channel max
SCREEN 8” color TFT display, 640x480 pixels

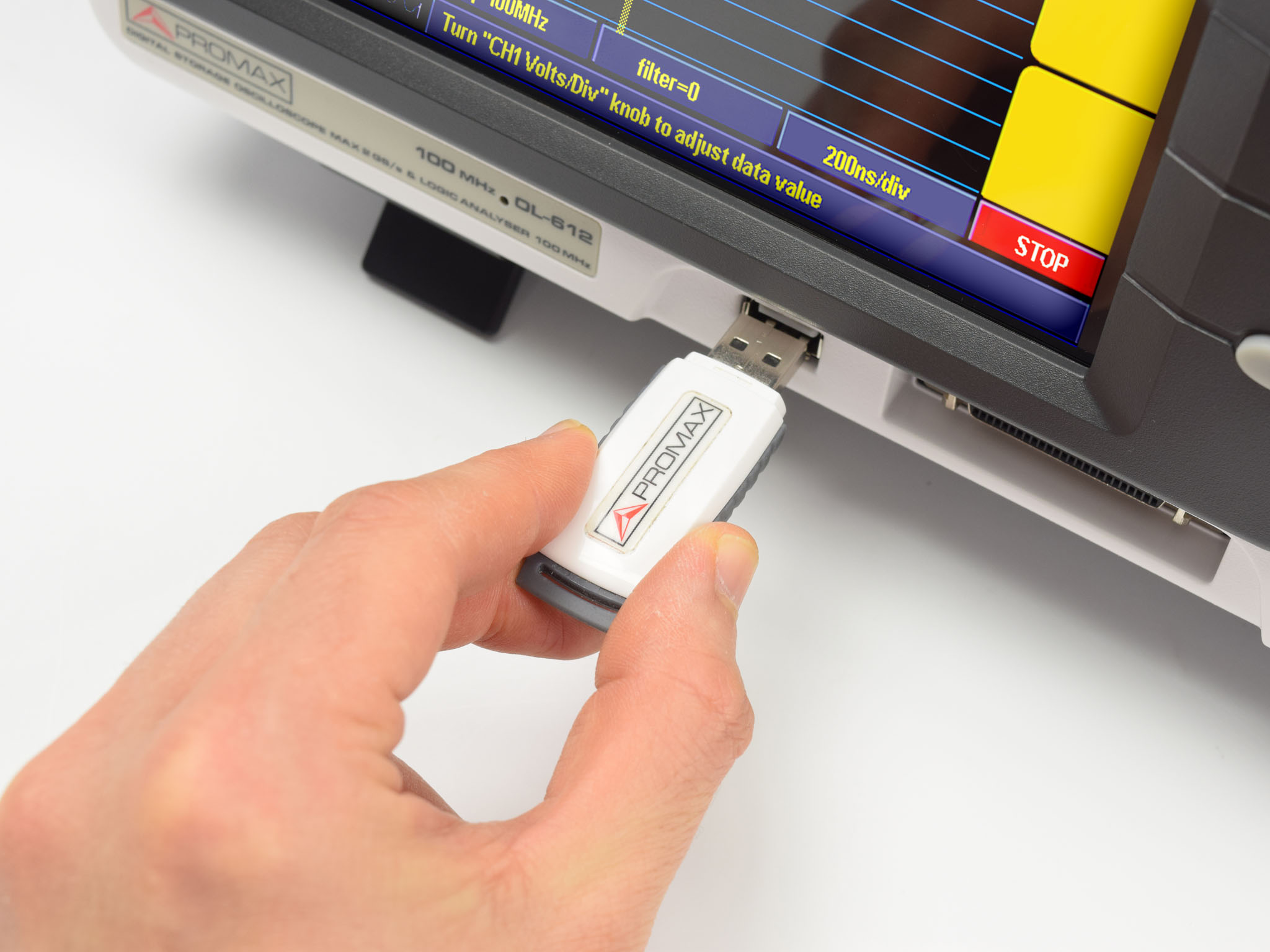

COMMUNICATION INTERFACES USB 1.1, USB for file storage, RS-232 port (optional)

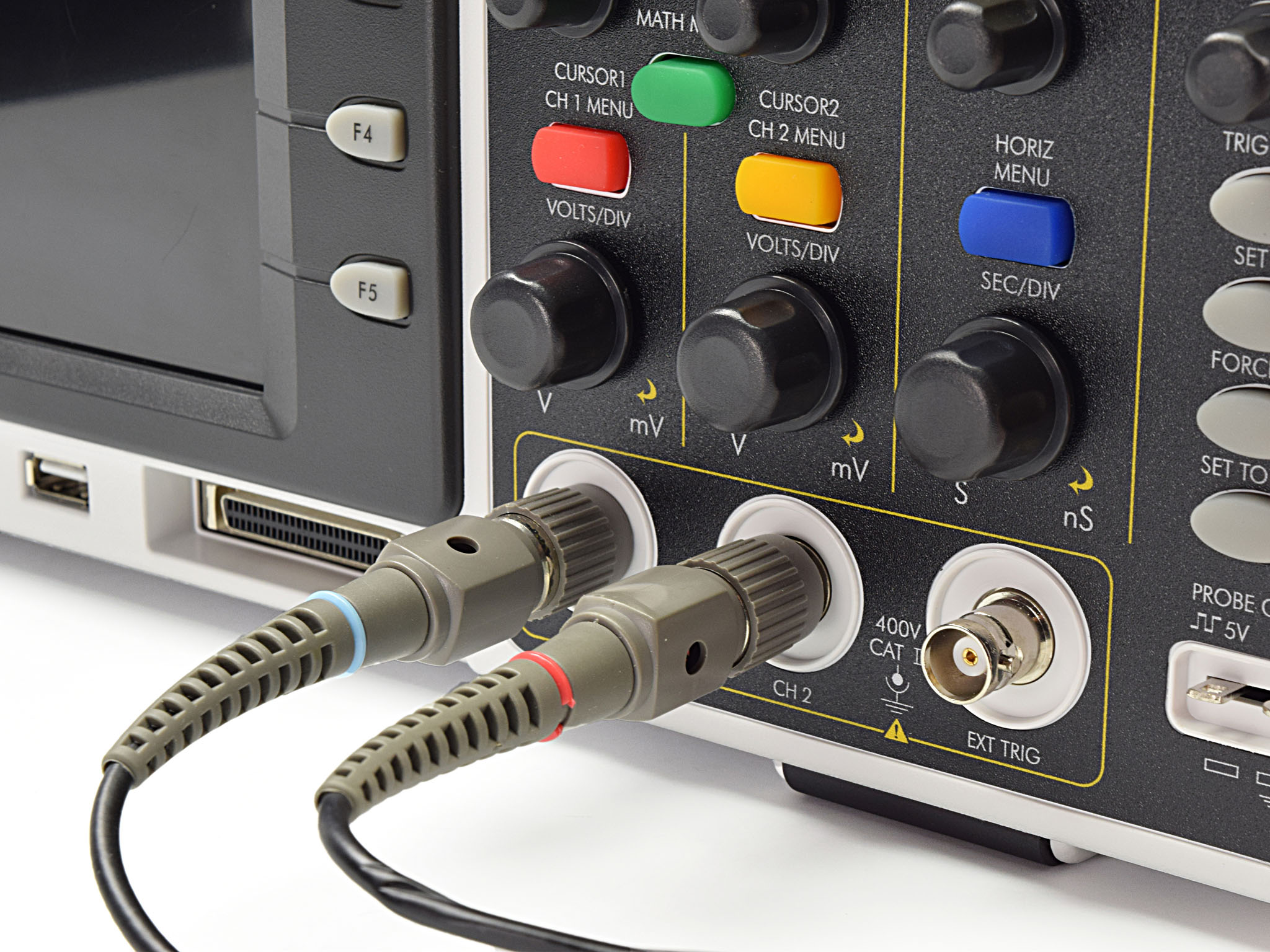

INCLUDED ACCESSORIES Passive probe (x2), Probe calibrator, Logic analyzer module, Power cord, USB cable, Quick reference guide, Software in CD-ROM
