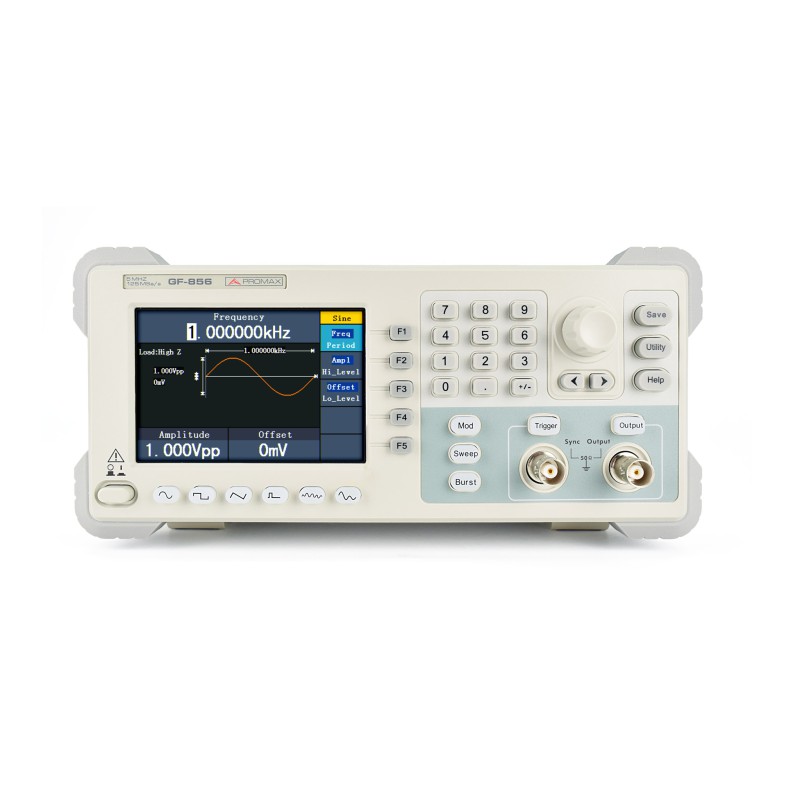

[GF-856] 5 MHz arbitrary waveform generator with customizable waveforms

User-customizable waveforms generator that can be created in the PC and uploaded to the instrument via USB.


The PROMAX GF-856 arbitrary waveform generator uses DDS (Digital Direct Synthesis) technology to offer two programmable signals with a sampling frequency of up to 125 MS/s, a 14 bits vertical resolution and a 1 µHz frequency resolution. All basic waveforms are pre-programmed (included 5 preprogrammed waveforms).

Besides using the front panel keyboard for programming, the program can be enhanced in the PC and send it through USB. Create your own waveforms using the PC software and generate them in the instrument. The front pannels features a high resolution 4 inches TFT LCD screen.

One feature that makes the generator especially interesting is the possibility of playing all types of analog and digital modulations: AM, FM, PM, FSK and perform sweeps and burst. The GF-856 also has an input for external modulation and external clock input. It includes a 6 digits frequency counter up to 200 MHz.

  • Frequency output: 5 MHz
  • Sample rate: 125 MS/s
  • Vertical resolution: 14 bits
  • Standard waveforms: Sine, Square, Triangle, ±Ramp, Noise
  • Arbitrary waveforms: 48 built-in + user-defined arbitrary waveforms
  • Frequency resolution: From 1 µHz to 5 MHz (noise waveform: 5 MHz -3 dB)
  • Modulation waveforms: AM, FM, PM, FSK, Barrido, Burst
  • Freqyency couner: Built-in.
  • External modulation input: DC input margin -20 kHz
  • External trigger input: TTL compatible, selectable slope
  • Reference clock input: Input voltage 100 mVpp to 5 Vpp
  • Counter input: It shares the same port as external reference clock input
  • Display: Color LCD 4”
  • Power supply: 100 to 120 V AC/ 220 to 240 V AC 50/60 Hz
  • Dimensions: 235 (Width) x 110 (Height) x 295 (Depth) mm
  • Weight: 3 kg
