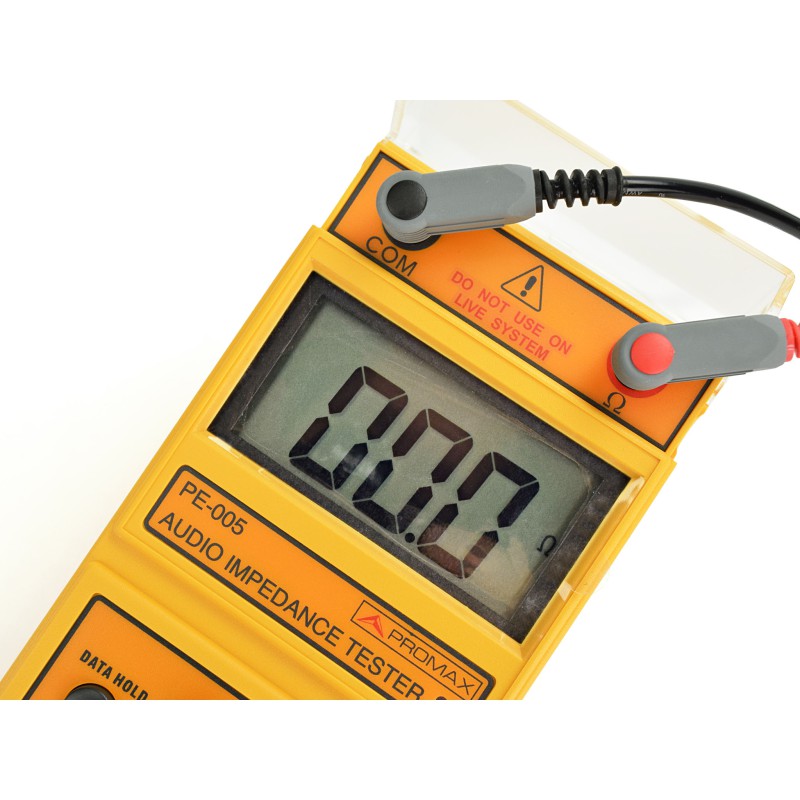

[PE-005] Audio impedance tester with triple scale (20, 200, 2000 ohm)

Tester for home theaters, concert halls and loudspeaking systems to estimate the necessary power for the audio amplifier.

€330.00
Quantity

  • Measurement ranges: 20 Ω / 200 Ω / 2000 Ω
  • Test frequency: 1 kHz
  • Accuracy (20 Ω scale): ±2% reading ± 2 digits or ± 0.1 Ω, which is greater
  • Accuracy (200 Ω / 2 kΩ scales) : ±2% reading ± 2 digits
  • Power supply: 9 V DC (6 x 1.5V AA batteries) with low battery indication
  • Measurement functions: HOLD
  • Display: 3 ½ digits LCD screen (2000 readings)
  • Dimensions: 90 (Width) x 205 (Height) x 55 (Depth) mm
  • Weight: 550 g approx (including batteries)
  • Included accessories: Test leads set with safety clamps, user's manual, transport suitcase



PE-005

Specific References
