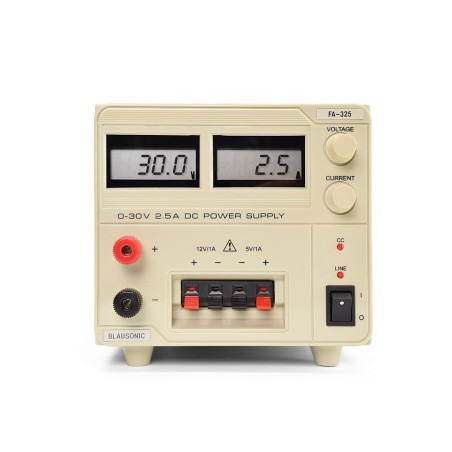

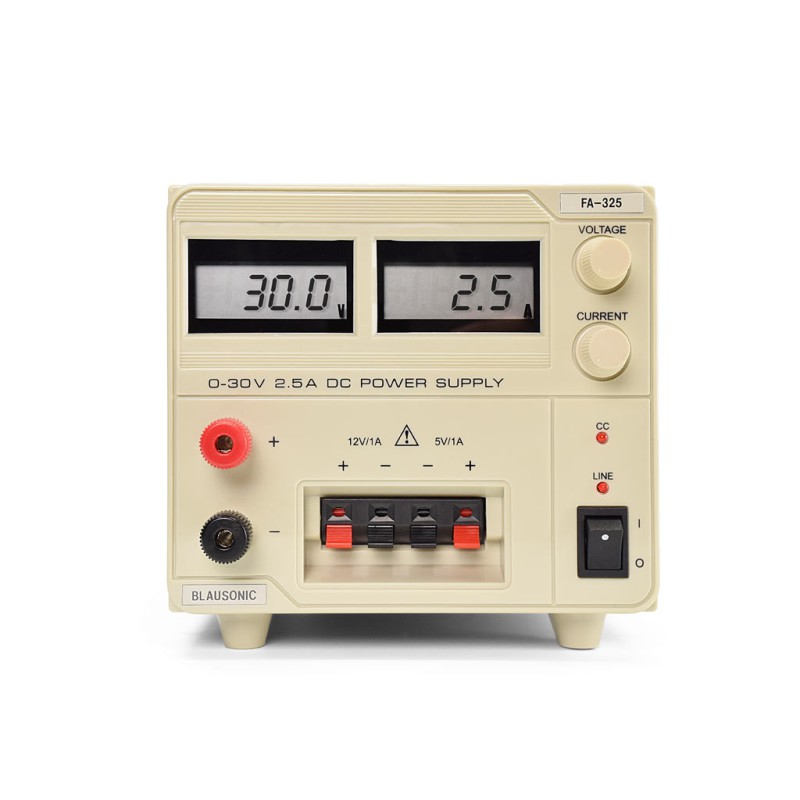

[FA-325] Variable DC power supply 30V/2.5 A (aux 12V/5V)

Cost-effective regulable DC power supply with digital voltage/current meters and fixed outputs suitable for both logic and analogic circuits.

€230.00

The regulable DC power supply FA-325 provides a variable output voltage between 0 and 30 V, with a current of up to 2.5 A. All the outputs are shortcircuit protexted, for any of the position of the controls, as the maximum current they can provide is internally adjusted.

The 30 V / 2.5 A power supply has two digital displays that allow for a simultaneous measurement of the voltage and the current.

In this regulable DC power supply, two fixed voltages and one regulable have been coupled in order to get rid of the inconvenience of using several power supples when designing or troubleshooting electronic circuits. The value of the fixed voltages has been chosen to allow supplying logical and analogical circuits simultaneously. Therefore it is specially suitable for labs and maintenance workshops.

  • Regulable output: From 0 to 30 V (0 to 2.5 A)
  • Fixed output #1: 12 V / 1 A
  • Fixed output #2: 5 V / 1 A
  • Measuring instruments: Digital
  • Supply: 230 V ±10 % 50 Hz
  • Dimensions: 150 (Width) x 145 (Height) x 200 (Depth) mm
  • Weight: 4.5 kg approx.



FA-325
