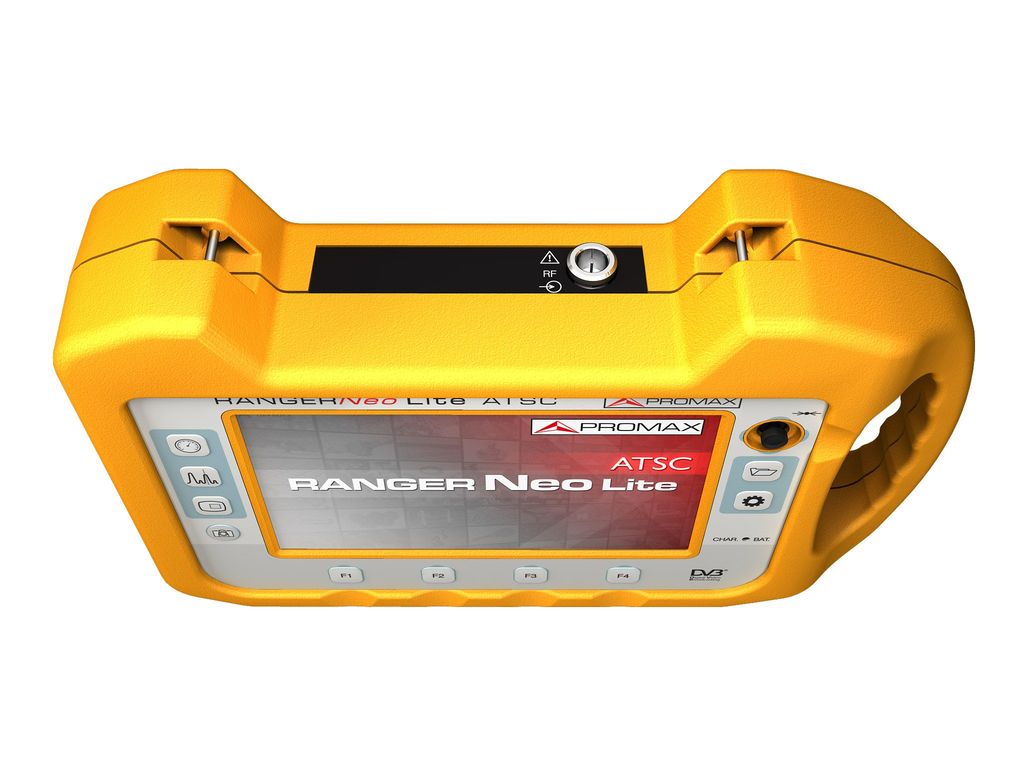

RANGERNeo Lite ATSC: Misuratore di campo multifunzione

RANGERNeo Lite ATSC: Misuratore di campo multifunzione

Misuratore di campo entry-level con tutti gli standard per l'alta definizione (ATSC, DVB-C2, DVB-S2), decodifica H.265 (HEVC), analizzatore WiFi 2,4 GHz, uscita HDMI™ e schermo touch.


The RANGER Neo Lite ATSC is an entry-level Field Strength Meter and Spectrum Analyzer that is part of a new breed of multifunction, TV, Satellite, CATV and WIFI analyzers.

They are intended to help installers not only to make their classic installation and troubleshooting work easier but also to deal with the many challenges brought about by the wireless world and the new video delivery platforms.

HEVC H.265 decoding and exceptional spectrum analyser capabilities are at the heart of the RANGER Neo Lite ATSC field strength meter surrounded by many functions such as WiFi analysis (including real spectrum display), wide band LNB compatibility, constellation diagram, dynamic echoes analysis, etc..., all in a very compact and light weight product (1600 gr) ideal for field work.

  • ATSC, DVB-C2/S2, DSS, Dolby Digital Plus
  • Super spectrum analyzer with Triple split display
  • Touch screen
  • HEVC H.265 decoding
  • Wide band LNB compatibility
  • Wi-Fi analyzer

OPERATION MODES Hybrid operation: 7” touch screen or conventional buttons
DIGITAL STANDARDS
  • ATSC
  • DVB-T, DVB-T2, ISDB-T
  • DVB-S, DVB-S2, DVB-S2 Multistream
  • DVB-C, QAM Annex B
  • DSS, ACM / VCM / CCM
VIDEO CODECS MPEG-2, MPEG-4 H.264, HEVC H.265
AUDIO CODECS MPEG-1, MPEG-2, HE-AAC, Dolby Digital, Dolby Digital Plus

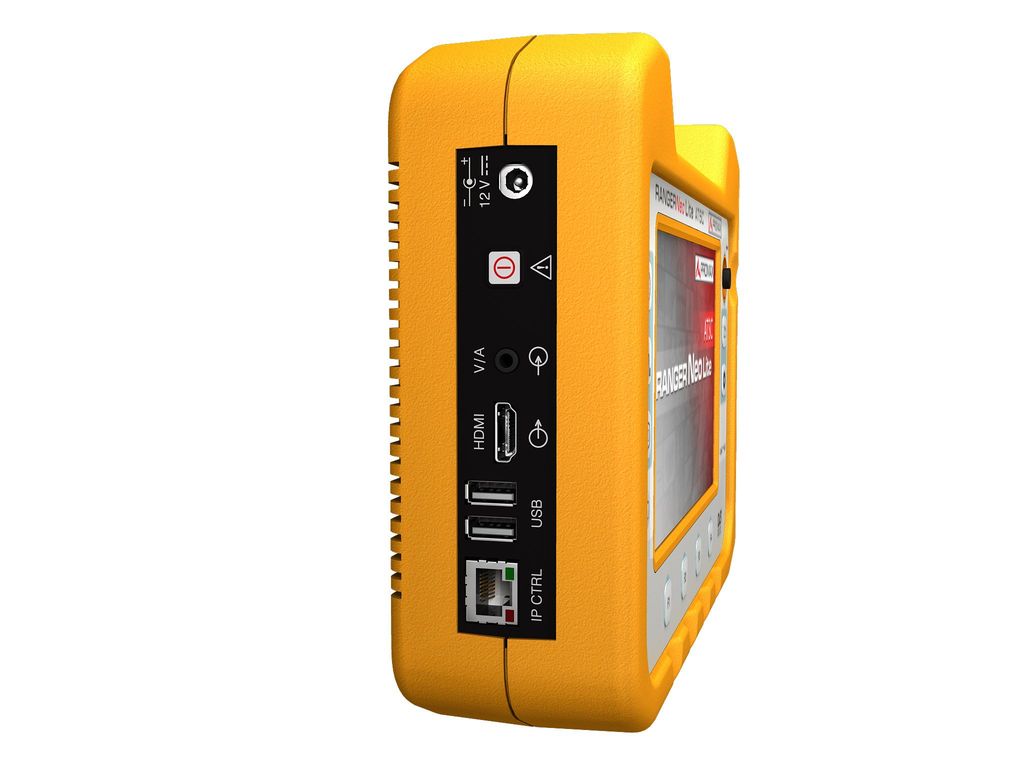

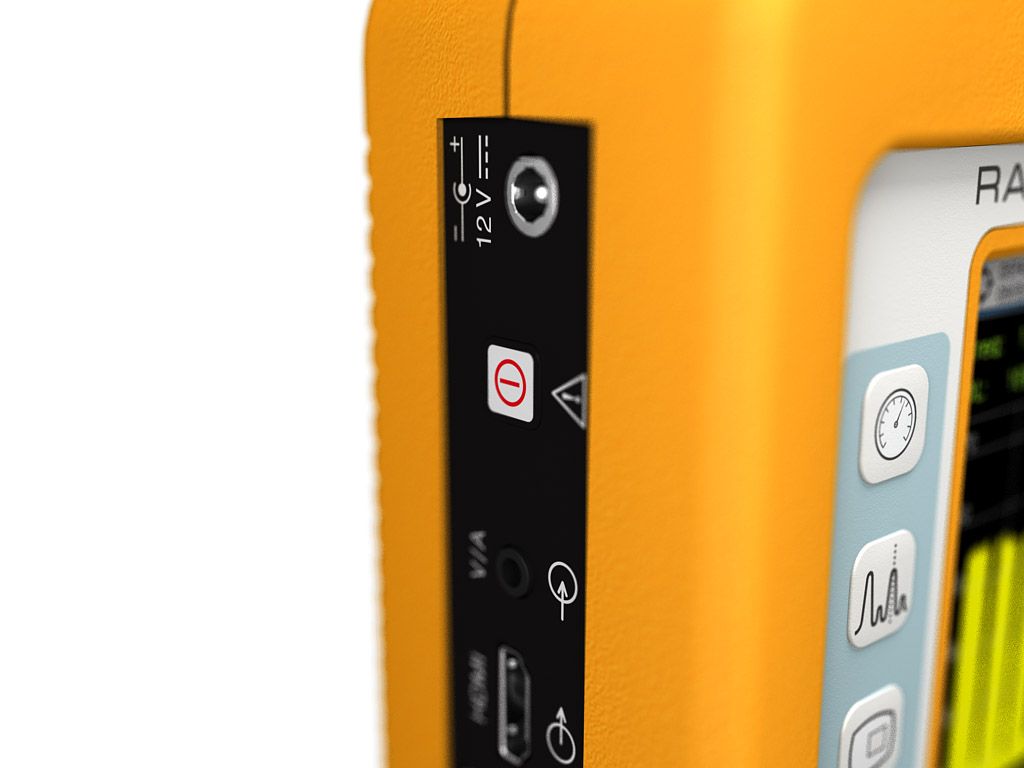

INPUTS AND OUTPUTS
  • Universal RF connector 75 Ω
  • HDMI™ output
  • IP input for remote control
  • Analogue Video/Audio input
  • 2xUSB for data tranferring
FUNCTIONS
  • Spectrogram
  • Constellation diagram
  • LTE
  • StealthID (instant identification of tuning parameters)
  • PLS (Physical Layer Scrambling)
  • Ultra fast spectrum analyser (70 ms sweeping time) with MAX/MIN hold
  • 4K Frame grabber
  • FM RDS radio measurements and decoding
  • Screenshots and Datalogger for measurement reports
  • Wideband LNB
  • WiFi 2.4 GHz
  • LTE 1.8 GHz
  • OTT
  • Service Recording
  • DVB-S2 multistream
  • Field strength
  • Task planner
  • Beacon-Flyaways SNG and VSAT
RESOLUTION BANDWIDTHS 100 kHz
PC CONNECTION (via ethernet interface)
  • NetUpdate 4 (free software)
  • Free and automatic firmware updates
  • User customised channel plans
  • Measurement reports and screenshots
