[AE-366B] 3 GHz spectrum analyzer with VGA output and remote control

Low cost, portable and small-sized 3 GHz spectrum analyser with USB and RS-232 ports as well as a direct VGA output which is ideal to perform slide shows.

€1,650.00

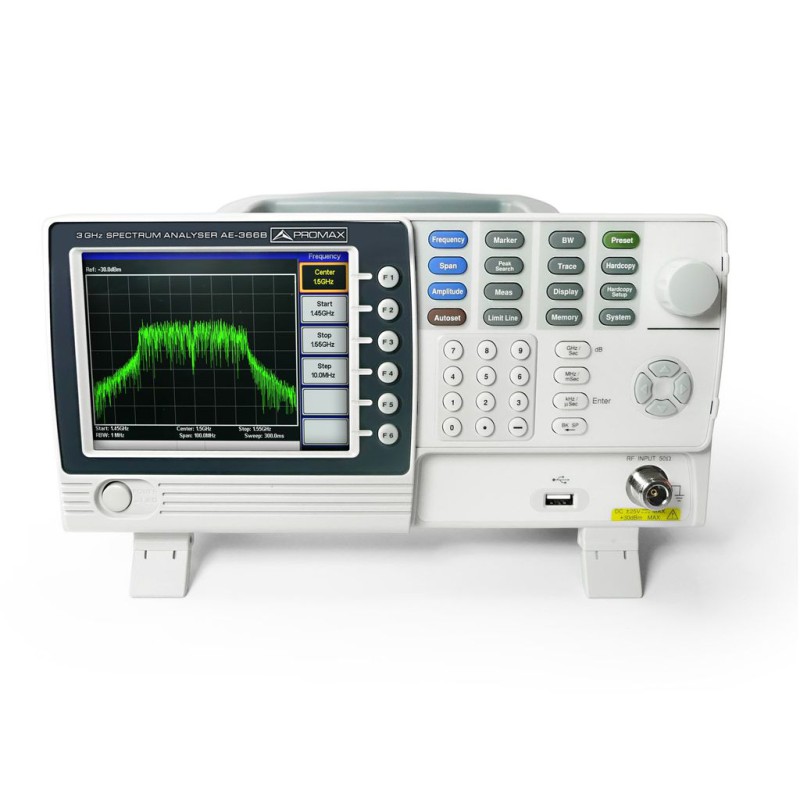

The AE-366 B is a low cost, portable and small-sized 3 GHz spectrum analyser. It offers all the main features of an advanced spectrum analyser.

The spectrum analyser model AE-366 B is specially designed to fulfil the needs of RF telecommunications in the educational field as well as to be the perfect tool for electronic labs. It features a wide range of functions such as markers, traces, power measurements, limit lines, split screen display and sync that allow to perform the measurements easier and faster.

It has USB and RS-232 ports as well as a direct VGA output which is ideal to perform slide shows.

- AUTOSET function: One-key automatic setup of the analyser
- Three-trace display: Max/Min hold, average...
- Up to 5 markers: Automatic measurements on the trace
- Graphical status bar: Easier to use
- Split window display: Two simultaneous set-ups
- PASS/FAIL filters: Check the values directly
- Power measurement: ACPR / OCBW functions, Channel power...


  • Frequency range: From 150 kHz to 3 GHz
  • Center frequency: Resolution 100 Hz (accuracy ±50 kHz)
  • Span frequency: Adjustable from 1 MHz to 3 GHz (accuracy ±3%)
  • BW resolution: Adjustable in 30 kHz, 100 kHz, 300 kHz or 1 MHz
  • SSB phase noise: -85 dBc/Hz
  • Reference level: From +20 to -40 dBm
  • Amplitude units: dBm, dBV, dBμV
  • Average noise level: ≤-100 dBm
  • Input connector: Type N, 50 Ω
  • VSWR input: Included
  • Sweep time: Automatic adjustment from 300 ms to 8.4 s
  • Connectivity: USB host/device, RS-232C, VGA output
  • Screen: Color LCD 640x480 pixels
  • Dimensions: 115 (Width) x 152 (Height) x 296 (Depth) mm
  • Weight: 2.2 kg
