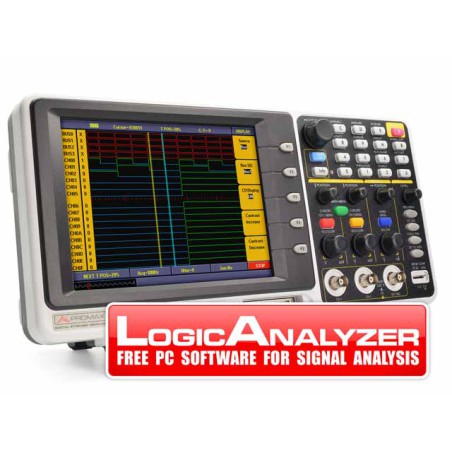

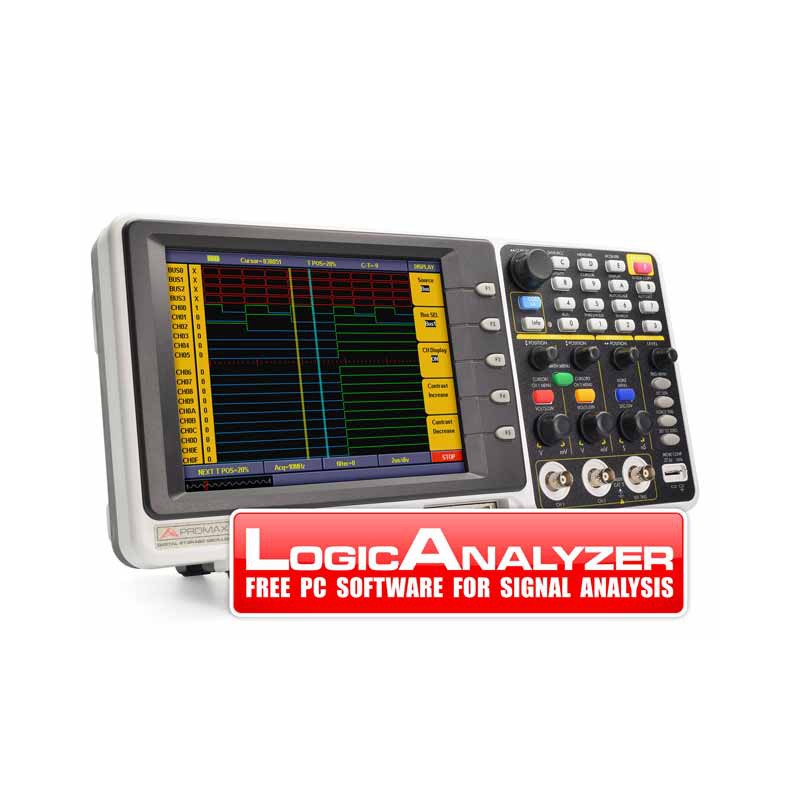

PROMAX OL-612 is an advanced multi functional oscilloscope plus a 16 channel logic analyzer.

The digital storage oscilloscope features up to 200 MHz of bandwidth and up to 2 GS/s real time sample rate. The large 8” TFT display ensures quick, comfortable reading and operation.

It includes advanced functions such as several trigger modes, 20 automatic measurements, waveform storage and USB connectivity.

The bundled 16 channel logic analyzer offers up to 200 MHz bandwidth and a sampling rate up to 1 GS/s. When connected to a PC, the free software application works with the equipment and allows to download, save, recall and analyse the data.


SPECIFICATIONS (OSCILLOSCOPE)

• Bandwidth: 100 MHz
• Sampling rage: 2 GS/s
• Horizontal scale: From 2 to 100 s/div, 1-2-5 steps
• Rise time: ≤ 3.5 ns
• Trigger: Edge, Pulse, Video, Slope, Alternate
• Channels: 2 + 1 (external)
• Screen: 8” color TFT display, 640x480 pixels
• Channel isolation: 100:1 (50 Hz), 40:1 (10 MHz)
• Max. input power: 400 V (PK-PK) (CC + CA PK-PK)
• DC gain accuracy: ±3%
• Record length: 2 M
• Probe attenuation factor: 1x, 10x, 100x, 1000x
• Sampling rate / Relay time accuracy: ±100 ppm
• Interpolation: sin(x) / x
• Input coupling: DC, AC and Ground
• DAC: 8 bits resolution (2 channels simultaneously)
• Vertical sensitivity: 2 mV to 10 V/div
• Trigger modes: Auto, Normal, Single
• Line/Field frequency (video): NTSC, PAL and SECAM
• Cursor measurement: ΔV and ΔT between cursors
• Math functions: Addition, Substraction, Multiplication, Division, FFT
• Waveform storage: 4 waveforms
• Lissajous digure: (Full bandwidth). Phase difference: ±3 degrees
• Communication interface: USB 1.1, USN for data storage, RS-232 (optional)
• Power supply: From 100 to 240 V AC, 50/60 Hz CAT II
• Dimensions: 348 (Width) x 170 (Height) x 78 (Depth) mm
• Weight: 1.5 kg
• Included accessories: 2 passive probes, Power cord, USB cable, Quick reference guide
• Automatic measurements: 20 automatic measurements

SPECIFICATIONS (LOGIC ANALYZER)

• Real time sampling rage: From 20 S/s to 1 GS/s
• Bandwidth: 100 MHz
• Channels: 16
• Record length: 4M per channel max
• Input impedance: 660 kΩ ±5% in parallel with 15 ±5 pF
• Triffer modes: Edge, Bus, State, Data Alignment, Data Width, Distributed queue
• Voltage threshold: From -6 V to +6 V
• Trigger position setting: Pre-trigger, Mid-trigger and Re-trigger
• Input signal range: From -30 to 30 V
• Data search: Available
• Data system: Binary, Decimal, Hex
• Digital filter: 0, 1, 2 optional
• Data storage: Export settings to pendrive
