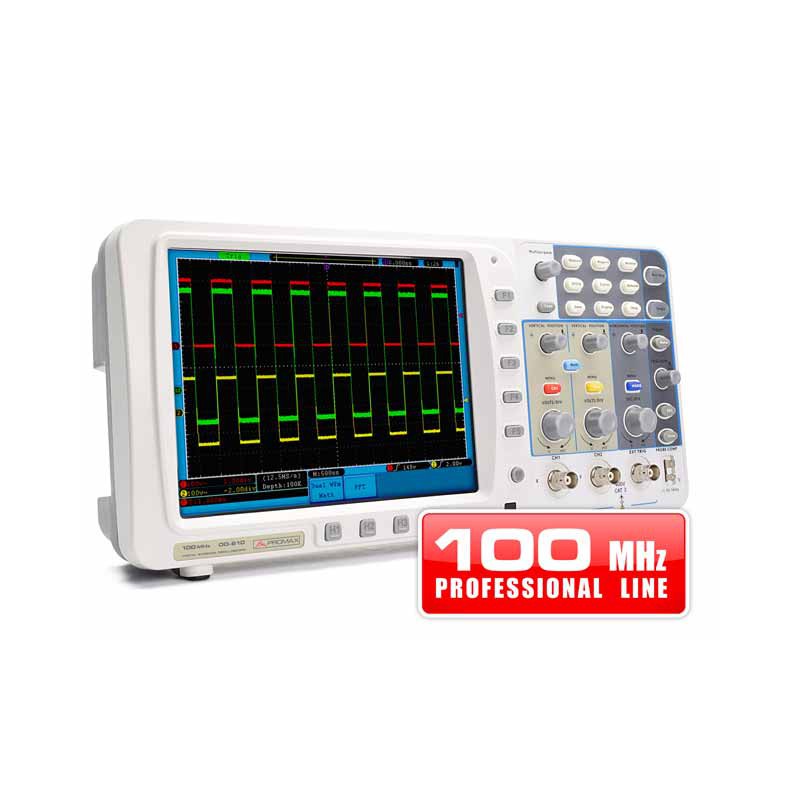

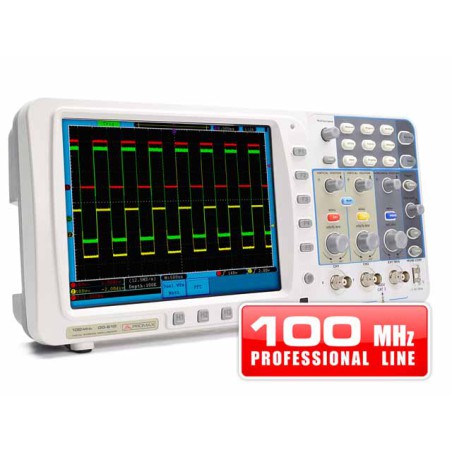

[OD-610] Oscilloscope (100 MHz, 1 GS/s) with PC connection, USB, RJ45

Professional range digital oscilloscope with several trigger modes, 20 automatic measurements, waveform storage and USB, LAN & RS-232 interfaces.

0
reviews

Leave review
€880.00

PROMAX OD-610 is a digital storage oscilloscope featuring up to 100 MHz of bandwidth and up to 1 GS/s real time sample rate. This professional range digital oscilloscope features an unprecedented large 8' high resolution display.

They include advanced functions such as several trigger modes, 20 automatic measurements, waveform storage and USB connectivity.

Their ultra-thin body (just 8 cm depth), compact design and light weight makes these PROMAX digital oscilloscopes ideal not only for desktop applications such as circuit design or production lines but also for those cases that demand to carry the instrument from one location to another: automobile maintenance and testing, education and training, etc.

  • Bandwidth: 100 MHz
  • Sample rate: 1 GS/s
  • Horizontal scale: 4 ns to 100 s/div, 1-2-4 steps
  • Rise time: ≤ 3.5 ns
  • Trigger: Edge, Pulse, Video, Slope, Alternate
  • Channels: 2 + 1 (external)
  • Screen: 8” color TFT display, 800x600 pixels
  • Channel isolation: 100:1 (50 Hz), 40:1 (10 MHz)
  • Max. input power: 400 V (PK-PK) (DC + AC PK-PK)
  • DC gain accuracy: ±3%
  • Record length: 10 M
  • Probe attenuation factor: 1x, 10x, 100x, 1000x
  • Sampling rate / Relay time accuracy: ±100 ppm
  • Interpolation: sin(x) / x
  • Input coupling: DC, AC and Ground
  • DAC: 8 bits resolution (2 channels simultaneously)
  • Vertical sensitivity: 2 mV to 10 V/div
  • Trigger modes: Auto, Normal, Single
  • Line/Field frequency (video): NTSC, PAL and SECAM
  • Cursor measurement: ΔV and ΔT between cursors
  • Math functions: Addition, Substraction, Multiplication, Division, FFT
  • Waveform storage: 15 waveforms
  • Lissajous figure: (Full bandwidth). Phase difference: ±3 degrees
  • Communication interface: USB 2.0, USB for file storage, LAN, RS-232
  • Power supply: From 100 to 240 V AC, 50/60 Hz CAT II
  • Dimensions: 348 (Width) x 170 (Height) x 78 (Depth) mm
  • Weight: 1.5 kg
  • Included accessories: 2 passive probes, Power cord, USB cable, Quick reference guide
  • Automatic measurements: 20 automatic measurements



OD-610
