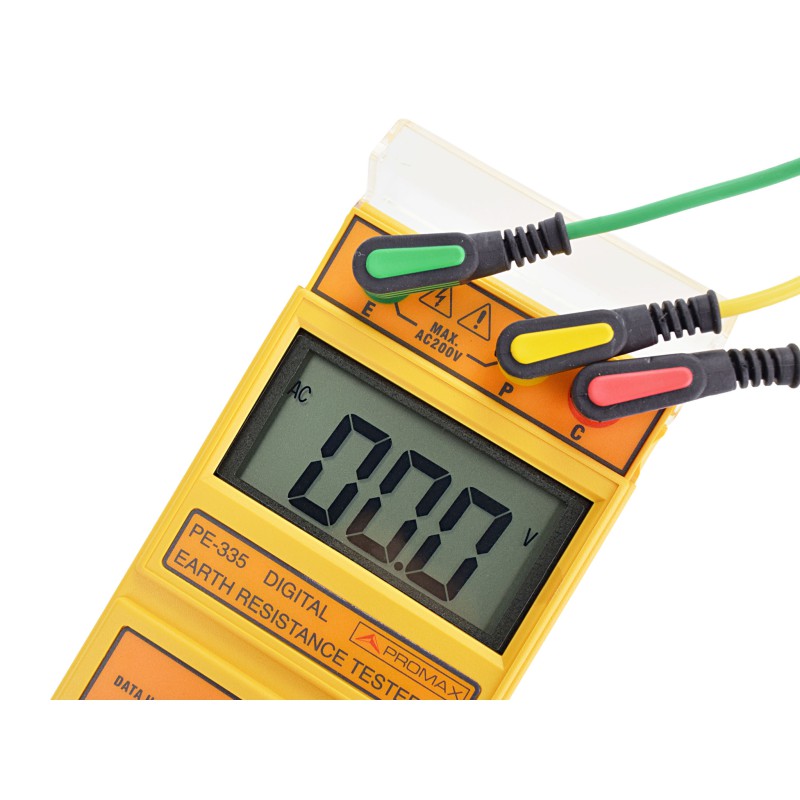

[PE-335] Digital earth resistance meter

Earth resistance tester (2 mA current) with three electrodes that allows testing the leakage current breaker in the circuit under test.

€400.00
Quantity



PE-335 carries out the earth resistance measurements by using the three-electrodes method. It includes an internal timer for the test functions (3 to 5 minutes) and HOLD function. It comes with standard cable and auxiliary earth spikes, all in a case containing the complete set.

  • Measurement method: 820 Hz constant current injection, 2 mA approx.
  • Earth voltage: From 0 to 199.9 V AC, 50/60 Hz.
  • Maximum input voltage: 200 V RMS
  • Scales: 19.99 Ω / 199.9 Ω / 1999 Ω
  • Resolution: 0.01 Ω / 0.1 Ω / 1 Ω depending on scale
  • Accuracy (earth impedance): ±(2% reading + 2 digits) or ±0.1 Ω, which is lower
  • Accuracy (earth voltage): ±(1% reading + 2 digits).
  • Response time: From 4 to 8 seconds
  • Measurement funtions: HOLD
  • Display: 3 ½ digits LCD screen (2000 readings) with over range measurement indication
  • Power supply: 9 V (6 x 1.5 V AA batteries) with auto power off (5 minutes max) and low battery indication
  • Dimensions: 90 (Width) x 205 (Height) x 55 (Depth) mm
  • Weight: 600 g approx. (including batteries)
  • Included accessories: Test cables, 2 auxiiliary earth spikes, Batteries, User manual, Transport suitcase.

PE-335
