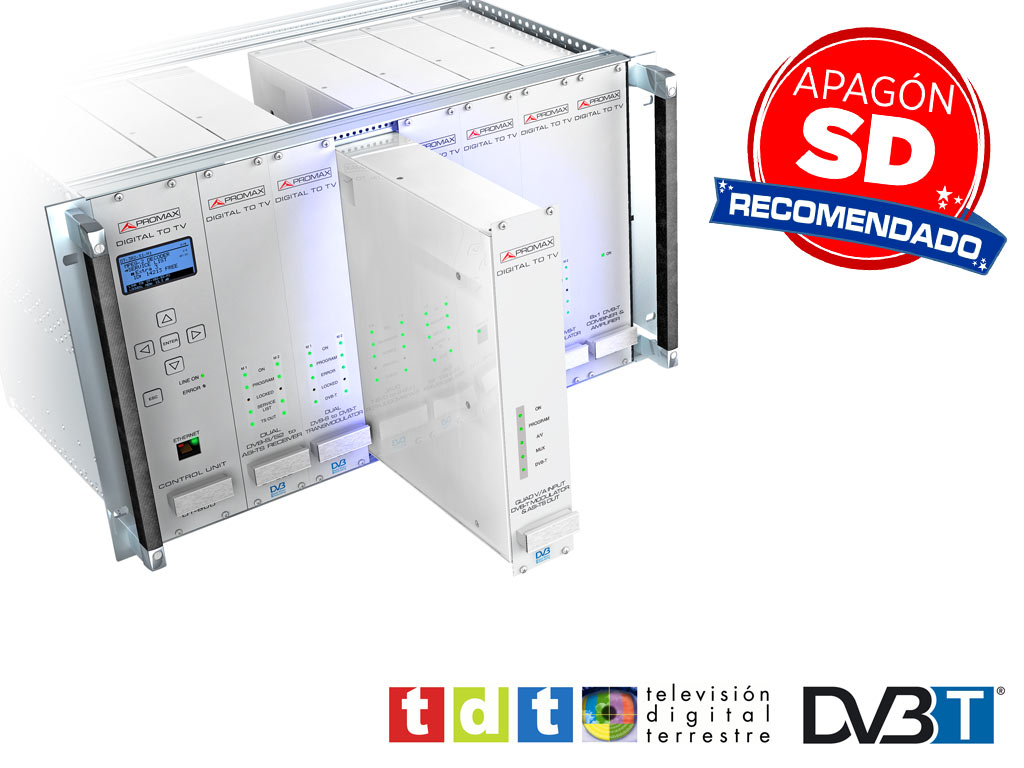

DT-504B: Quadruple Video/Audio encoder, DVB-T and TS-ASI output

DT-504B: Quadruple Video/Audio encoder, DVB-T and TS-ASI output

It builds a broadcast signal in DVB-T and TS-ASI format from four composite video and audio inputs.

The DT-504B module offers the possibility to build a broadcast signal in DVB-T and TS-ASI(*) format from four composite video and audio inputs. It is made of four independent video and audio MPEG-2 encoders and a modulator. Audio inputs can be stereo or mono.

Frequently some TV services are only available as analogue baseband video. That is the case of encrypted programmes which can only be received with a dedicated STB and smart card, signals from CCTV cameras, door entry systems, etc.

By means of the DT-504B modulator, programmes originally in analogue format are inserted to the TV distribution network with the benefits of DVB-T technology.

(*) TS-ASI output optional (option OP-504-S).

A/V INPUTS 4 independent A/V inputs
Connectors 3 RCA-Female connectors for each input
RF OUTPUT 1 DVB-T multiplex
Connector Female F-type, Impedance 75 Ω
TS-ASI OUTPUT Optional
MPEG-2 ENCODER
Video input PAL/NTSC
Audio input Stereo/Mono/Dual/Joint Stereo
Format MPEG-2
Video bitrate Acording to DVB-T modulation parameters
Audio bitrate From 32 to 384 kbits/s selectable
Editable parameters Service Name, Service ID, Vídeo PID, Audio PID, PMT PID
Measurements Total bitrate

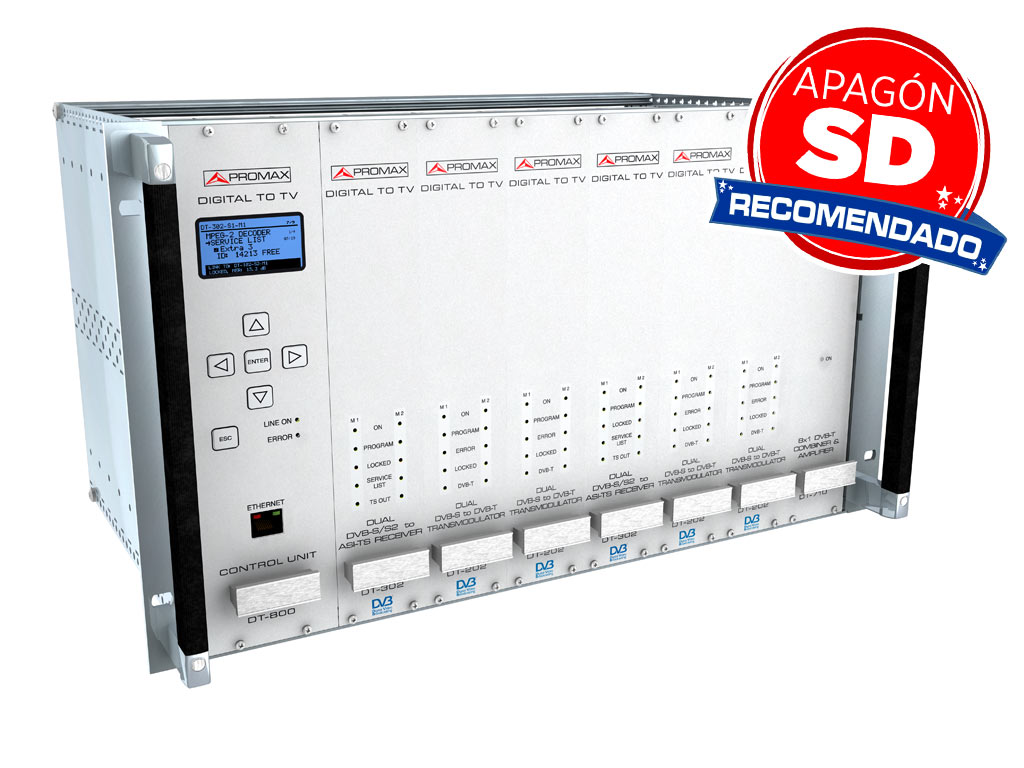

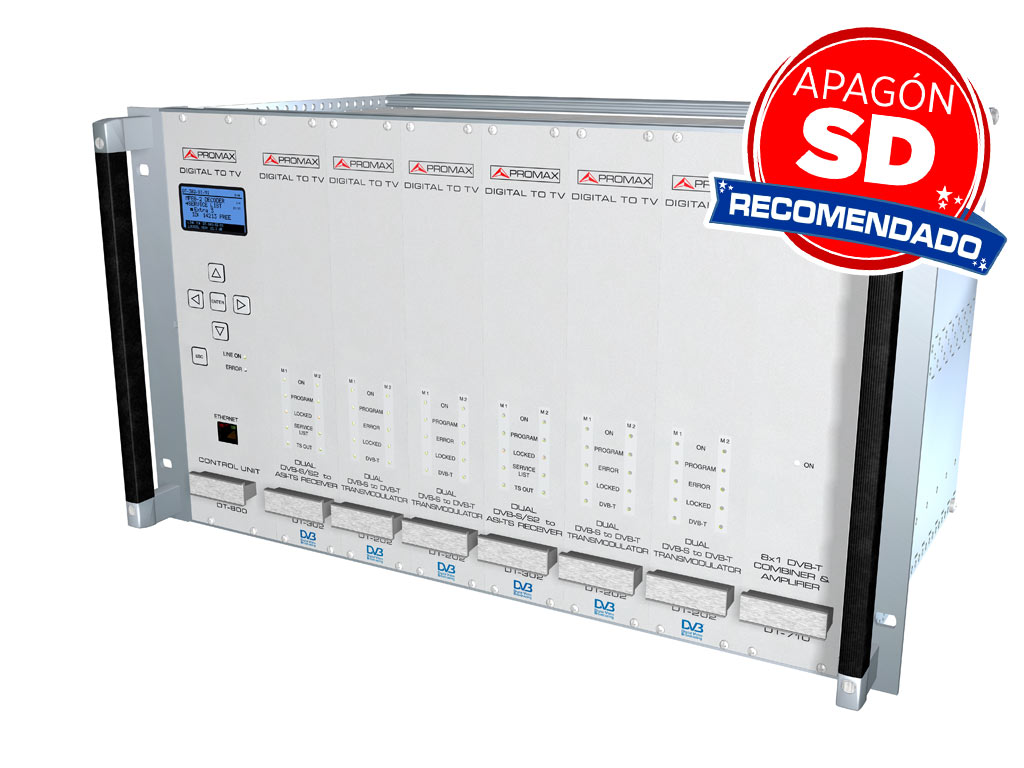

CONFIGURATION AND POWER SUPPLY Via the DT-800 Control and Power module. Control can be made remotely from to PC
